Materials and Structures
A wine shipping box has to do two jobs at once: survive a courier van loaded three times before it reaches the customer, and still look right when it's opened. That means board, facing paper, structure, and insert all get chosen together, because one wrong call makes the bottle move and another makes the box look cheap. Here is how we pick.
The Board Standard
We build every wine box on greyboard, minimum 1200 gsm for wine and 1400 gsm recommended for spirits, because those bottles are heavier and the corners take more abuse. No recycled greyboard, no high-moisture paper; both fail in humid warehouses and on sea freight. Facing paper is 157 gsm at minimum, specialty or coated. The greyboard carries the load, and if it's too light, the box flexes and the insert loses its grip. The facing paper carries the print, and if it's too thin, corners scuff in the first week. We see both failures in boxes specced by price, not by transit.
Six common materials

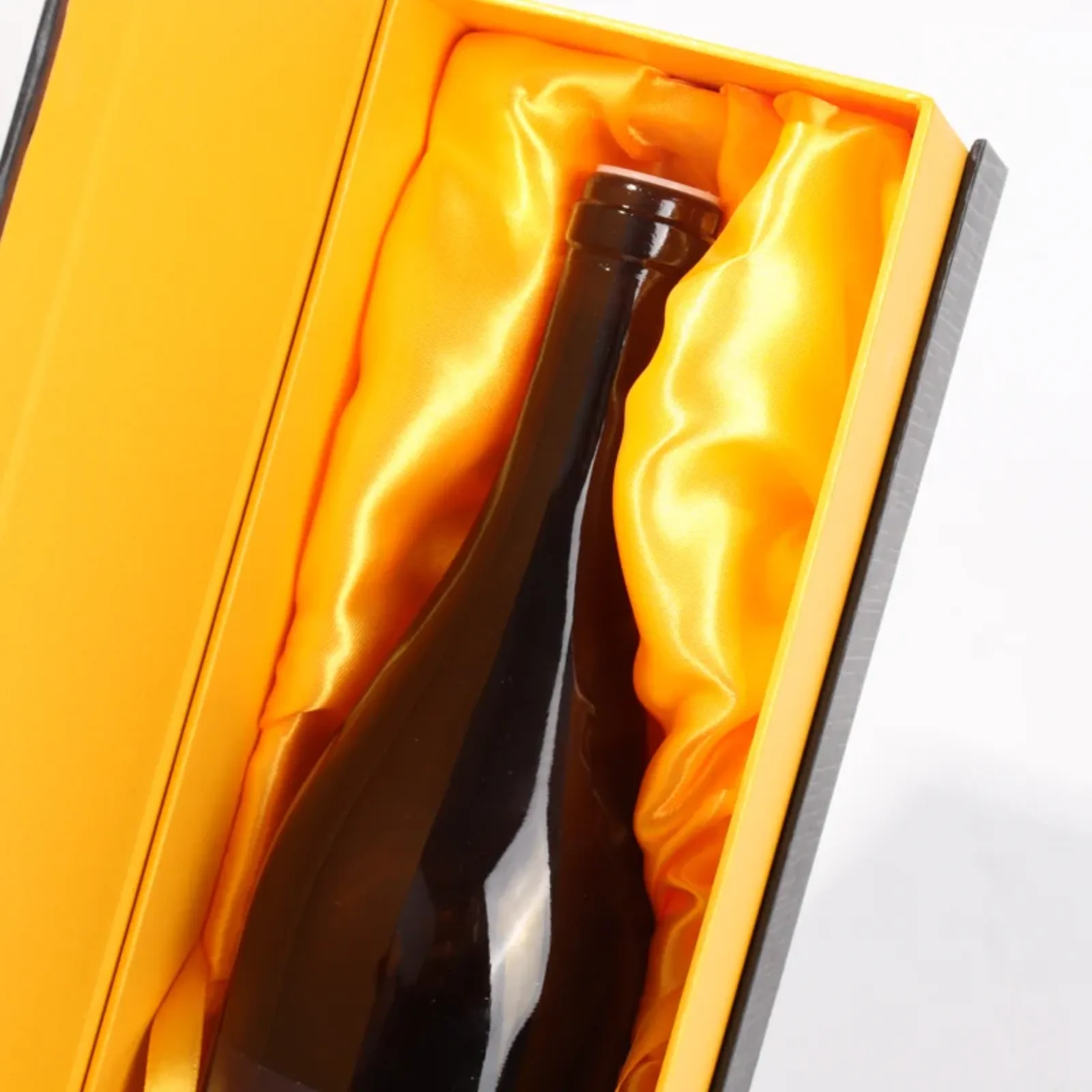

Greyboard with specialty paper
The workhorse for rigid retail boxes and transit boxes that need to look finished. It takes fine print and foil well. The specialty paper adds texture without adding weight.
Kraft paper
Corrugated shippers and economy gift boxes, mostly. It hides scuffs better than coated stock, but it drinks ink, so fine text and small logos come out soft.
White card
A clean, bright print surface works well here; you get a crisp result on a foldable box or lightweight sleeve. It prints crisper than kraft, but picks up dirt and edge wear faster.
Gold/silver cardboard
Metallic facing gives you shelf presence without foil stamping cost. It can look cheap if the structure is flimsy, so we only use it on rigid boxes.
Flocked paper
A soft, velvety facing for premium rigid boxes and inserts. In hand it feels expensive, but it's the wrong pick for a box that gets stacked or rubbed in transit.
Leather-textured paper
An embossed facing that mimics leather for a fraction of the cost. It wears well, hides fingerprints, and it's a common choice for gift boxes sitting on a shelf.
Six box structures
Rigid lid-and-base
Because it separates lid from base, this two-piece box gives you the most protective structure we make, which is why we recommend it for bottles that are high-value or in transit for a while.
Magnetic closure
But a rigid box with magnets in the flap, while it opens and closes cleanly, adds cost in the magnets, and if the pack is overfilled, that flap hinge becomes the first point of failure.
Drawer
It feels like a presentation piece. A tray slides out of a sleeve. The sleeve can tear if the drawer is forced, so it needs a tight insert.
Foldable
Keeping freight volume down because it ships flat, this box erects at the pack station, yet the creases must not crack and the corners must hold 90 degrees, which is exactly why we check both.
Double-door
Two panels open from the center. They give a good reveal moment, but the doors can bow on handling if they aren't made stiff enough.
With handles
Any rigid structure can be fitted with a handle. It makes carrying easier, sure. Putting a handle on also means reinforcing a stress point at the attachment.
Four insert types
Velvet tray
Lined with velvet or flocking, the rigid tray holds the bottle at the base and shoulder, but repeated removal and replacement can make the velvet shed.
EVA foam
The foam, cut from closed-cell material to the bottle profile, absorbs shock minus all the shedding of a cotton-sleeved alternative. It costs more than paper pulp. And on a gift piece, it can seem industrial.
Blister
A clear plastic shell that shows the bottle. You'll see it's fine for retail display, but scratches easily and can crack in very cold temperatures.
Paper mould
Moulded pulp holds the bottle at four points. It's recyclable and cheap, less precise than foam and can crush under a heavy top load.
Pick a Combination
Start with the bottle and the transit. A 750 ml bottle will survive a 1.2 m drop if it's in a rigid lid-and-base with a velvet tray, but that setup costs more than a foldable box with a paper mould. When the box travels by sea, you want 1400 gsm greyboard and a coated facing paper. For courier in a single parcel, 1200 gsm is enough. The insert is what stops the bottle moving, so match it to the bottle shape, and a Burgundy bottle needs a wider shoulder pocket than a Bordeaux.
Then pick the facing paper for what your customer's hands touch. Kraft hides scuffs on a corrugated shipper, white card prints a clean logo on a foldable box, and flocked paper feels premium on a rigid gift box, but it will look tired after one trip through a sorting hub. Should the box do both jobs, transit and display, use a rigid structure with a coated or specialty facing paper. That combination is what we see hold up longest in e-commerce returns data.
Buyer questions
Which material is best for a wine shipping box that will be stacked in a warehouse?
Use 1400 gsm greyboard with a coated facing paper. The heavier board and the coated paper, which does not absorb humidity the way kraft or uncoated stock does, resist crushing under top load. When we test stacking at 40 kg or more for 24 hours, the heavier board makes the difference between a box that holds its shape and one that sags.
Can I use a foldable box for a high-value bottle?
You can, if the insert is tight and the creases are good. A foldable box saves freight volume, but the creases are the weak point. We check that the creases do not crack and that the corners hold 90 degrees when erected, and if the bottle is over 1 kg or the transit is long, then a rigid box is the safer choice.
What facing paper should I choose if the box needs to look premium but will be handled a lot?
Leather-textured paper is the best balance. It gives you that tactile feel of leather, hides fingerprints, and wears well on a shelf or in a hand. Flocked paper looks more luxurious, and it will show rub marks after a few handlings. Gold or silver cardboard is flashy but can look cheap if the box is not rigid.
Not sure which material fits?
Send the bottle and the market it ships to. We propose board, facing paper and insert together.
